Unique and OutStanding Features in the World
MerryChef® was the world firstly certified by IEC 60335-1 and IEC 60335-2-6 standards relating to the safety of electrical appliances on 2012 based on the linear power sharing technology being able to use the multiple burners at the same time with 16A/220V or 15A/230V power plug.
Unlike conventional On/Off power control system controlled by repeatedly blocking the power based on the pre-set time cycle, MerryChef® offers the continuous and precise, stable firing at any level from strong to weak
MerryChef® can offer the best cooking process in firing, also it can offer the longer product lifecycle in every parts and more stable electric environment condition in using place compared with conventional control system because it is operated without drastic voltage fluctuation on working.
The First in the World !
Completely Linear and Precise, Stable Firing based on Linear Power Sharing Technology without Repeated Cutoff
Power like Conventional Power Control System ( Patent Technology )
The First in the World !
Automatic Power Adjustment Control System on Low and High Voltage ensures the Safety and more Convenient use
( Patent Technology )
When the drastic electric change like high or low voltage is detected, the automatic power adjustment control system is automatically activated to work it properly within rated output.
This system prevents a danger caused from the sudden surge by controlling down the excessive output power on high voltage conditions and also it prevents the delay of heating rate by controlling up the short output power on low voltage conditions.
As a result of this system, every users can use safely and conveniently in spite of both of high and low voltage conditions.

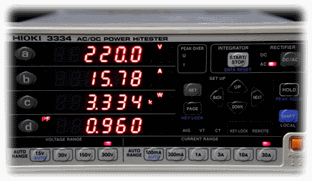

In case of 220V environment, the control accuracy of current within allowed full range of voltage change from 207V to 233V is Max. ± 0.3 % by RMS measurement method and Max. ± 3.3% in True RMS measurement method. The conventional control system show Max. ± 7% by RMS measurement method and Max. ± 12% by True RMS measurement method.
The First in the World !
Convenient and Economical with No Need of Additional Electric Works for Installation ( Patent Technology )

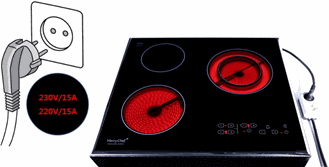

MerryChef® can be used simply and instantly with the power plug installed in production by using the linear power sharing technology.
Consumers can use MerryChef® anywhere including the kitchen, living room and even out of doors with no additional electric works of more cost and inconvenience as long as there is 16A general outlet for home use.
MerryChef® is firstly certified and commercialized as a kind of linear power sharing control by IEC 60335-1, IEC 60335-2-6 standards relating to the safety of electrical appliances.
MerryChef® detects the real-time current value 120 times every second on working. If its value exceeds the allowed limit by any unexpected situation or every reasons, MerryChef® shuts off all the operations and automatically cuts off the power to prevent the danger from overcurrent and ensure the safety.
The conventional control system do not have this kind of safety system to detect the real-time overcurrent and cut off the power with shutoff of all the operations.

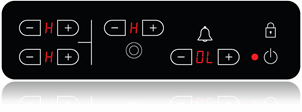

When the detected current value exceeds a limit value preset for the safety, all the operations are shut off and the power is automatically cut off alerting with “ Alarm Sound “ and displaying “ OL “ on Timer LED to prevent the dangers from overcurrent and ensure the safety.
The First in the World !
Real-time Detection of Overcurrent and Automatic Shutoff System for Safety
Seamlessly precise and stable ignition with fine-tuning function from strong to weak fire ensures the differentiated and stable cooking process, and also consumers can visually check the strength of fire while cooking.
The First in the World !
Differentiated Fire Control and Outstanding Cooking Process
Using Semi Conductor Device as Semi-permanent Heat Source Supply Control Device
MerryChef® use the semi conductor electronic parts as core component for control the heating source instead of the relay switch being used at all of the conventional control systems.
This components ensure the outstanding durability and stability not comparable to the conventional products.
MerryChef® detects the internal temperature of the range 120 times every second on working.
When its value exceeds the allowed limit, all the operations are shut off and the power is automatically cut off alerting with “ Alarm Sound “ and displaying “ CH “ on Timer LED to prevent the dangers from overheating and ensure the safety.
Real-time Detection of Overheating and Automatic Shutoff Control System for Safety
The child safety lock function is embedded to protect the children from every incidents occurred from unintended operation by carelessness of children.
Child Safety Lock to Prevent Child Injury
Safety Function to Prevent Incidents by Carelessness
MerryChef® always trace the time from user’s final key adjustment based on three kinds of time tables according to the sum of all burner’s power level.
If user do not adjust any key for longer time than one of three time tables according to the sum of power levels, all the operations are shut off and the power is automatically cut off alerting with “ Alarm Sound “ and displaying “ OF “ on Timer LED to prevent the dangers like overheating and ensure the safety.
Residual Heat Warning Indicator
When the burner is switched off or even after MerryChef® is turned off, if the residual heat with risk of causing injury remains on cooktop glass, the residual heat warning indicator blinks to warn of danger to users and goes out only after the cooking zone has cooled.
Detection of Abnormal Touch Button Operation and Automatic Shutoff System for Safety
In case of the touch button being operated abnormally by unexpected users like children or pets, the touch interface system detect it and shuts off all the operations immediately, also the power is automatically cut off to prevent the dangers in advance and ensure the safety.
Additional Built-in Safety Apparatus for Control of Overheating in Burner
Adding to Overheating Control System based on Micro Processor, the additional built-in Safety Apparatus control not to exceed the configured limit temperature of burner and to protect overheating in Burner itself, it is activated independently from every safety systems based on Micro Processor to ensure the safety doubly and firmly.
Safety Function to Detect Abnormal Operation of Control System
When the control system does not operate completely, Independent safety system to Detect Abnormal Operation of Control System by Micro Processor is activated to shut off all the operations and the power is automatically cut off to prevent the unexpected dangers in advance and ensure the safety. This system is operated independently from the control system based on micro computer.

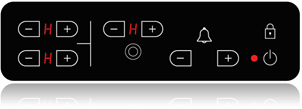

Convenient Use with Touch Button Control Interface
The complete touch control system by highly reliable capacitive touch sensor and semi conductor IC designed exclusively for touch interface control enable to use easily and conveniently.

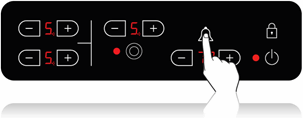

Individual Timer System Operated based on Minute and Second Time Unit
By Individual Timer System, customers can set the time value separately for each burner and MerryChef® is operated individually by Minute and Second time unit even when multiple heaters are working at the same time.
Equipped with CERAN® glass ceramic of Schott, Germany
Using CERAN® glass ceramic as cooktop manufactured by the world most reliable Schott of Germany, it assures to use safely even for long time.
Equipped with the High-end Burner of EGO GmbH, Germany
Using the burner as heating source manufactured by the world most reliable E.G.O of Germany as heating source, it assures to use safely even for long time.
Electric Range Used for Both Built-in Installation and Free Standing Use
MerryChef® is basically the product for Built-in use. But portable cradle is provided for customers to be able to use in free standing mode in living room or other places in the future.
A Product made for chefs and cooking specialist
The product is initially designed and developed for professionals like chefs and cooking artist across the world but is also perfectly fitting for more convenient and reliable use at homes.
A Eco-friendly and Safe Cooking Equipment
MerryChef® is the environment-friendly and Safe Cooking Equipment without emission of noxious gases including carbon monoxide and risk of explosion.
